Date: 2022
Location: Adelaide, SA
Technical Skills: Hand Drawing, Architectural Documentation
This project focused on selecting external cladding for an existing office space and advancing the design through comprehensive architectural documentation. The hand-drafted drawings provide a detailed exploration of construction techniques, drawing conventions, scales, and material selections. Created with pencil and pens of varying weights, the documentation includes title blocks and drawing legends on every page, ensuring clarity and precision.
Drawing Index:

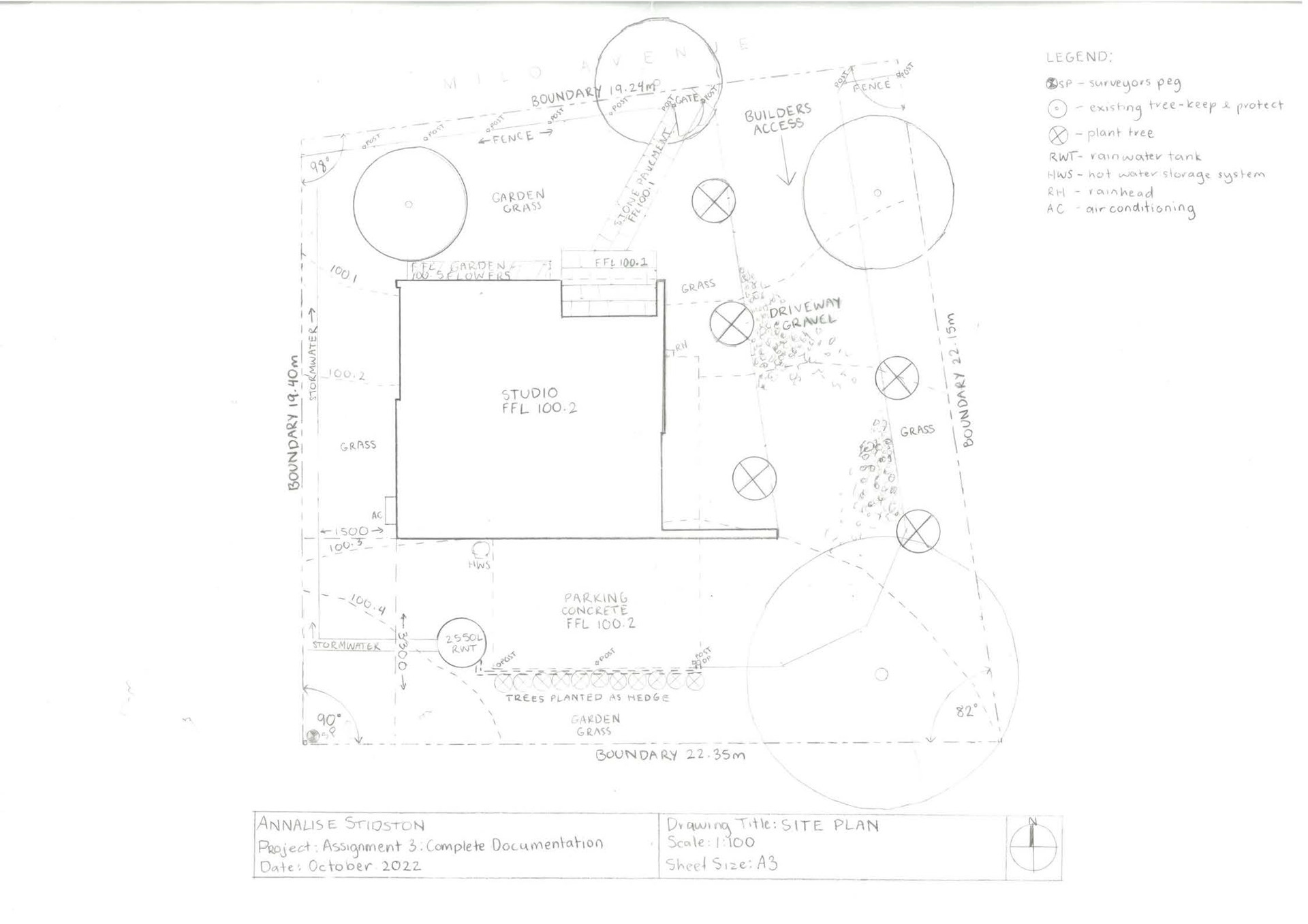

Image 1 - 1:50 Site Plan

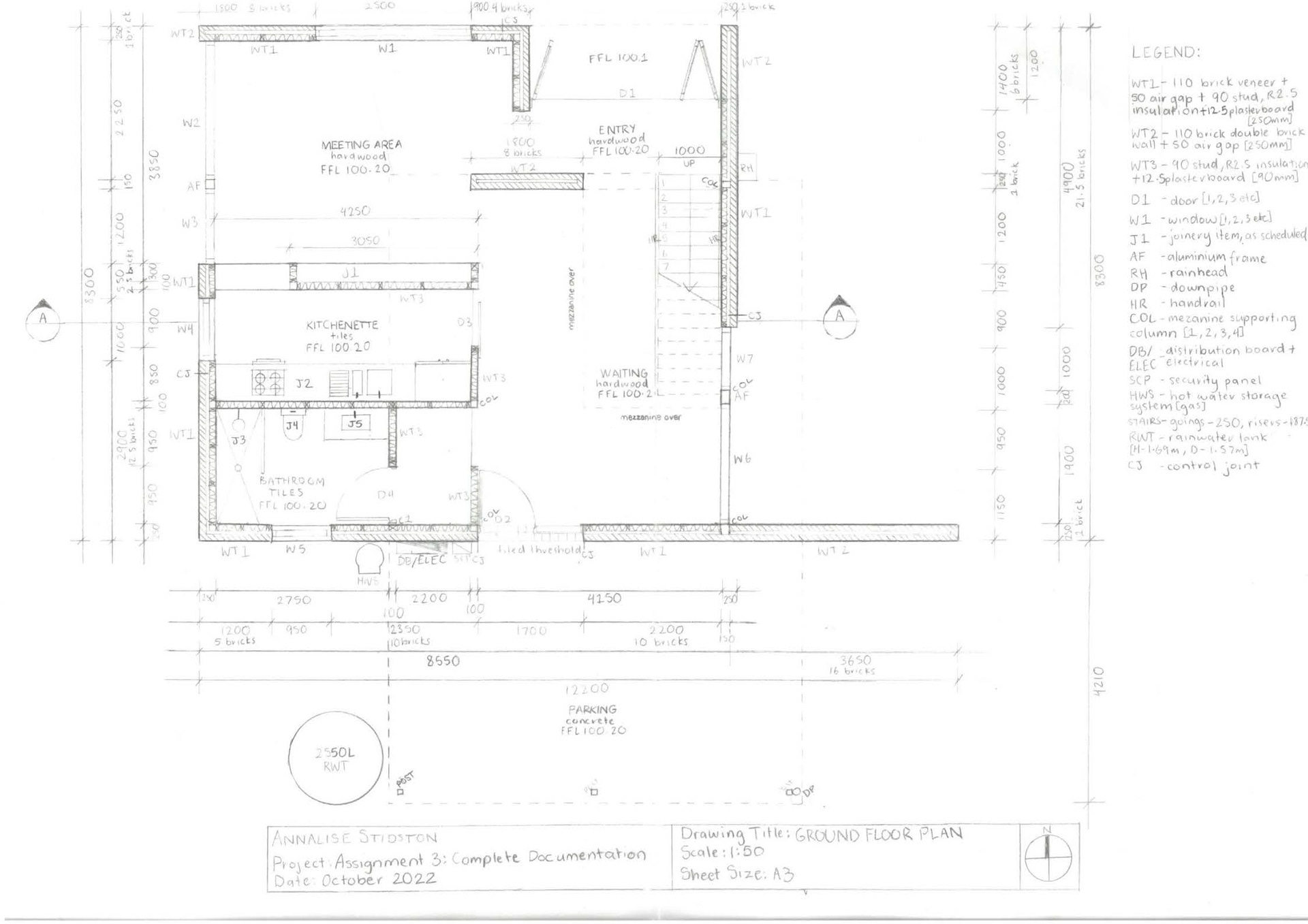

Image 2 - 1:50 Ground Floor Plan

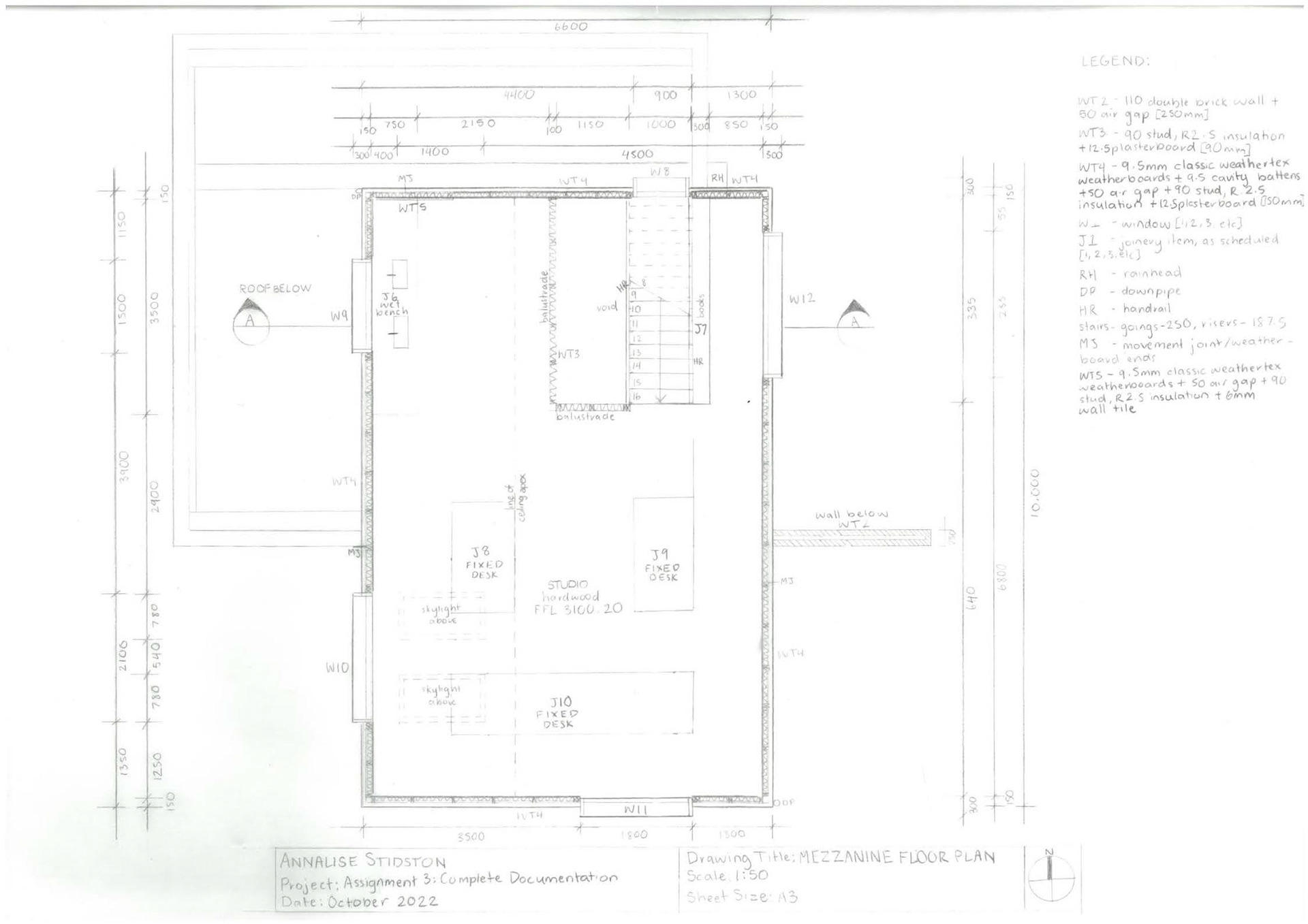

Image 3 - 1:50 Mezzanine Floor Plan

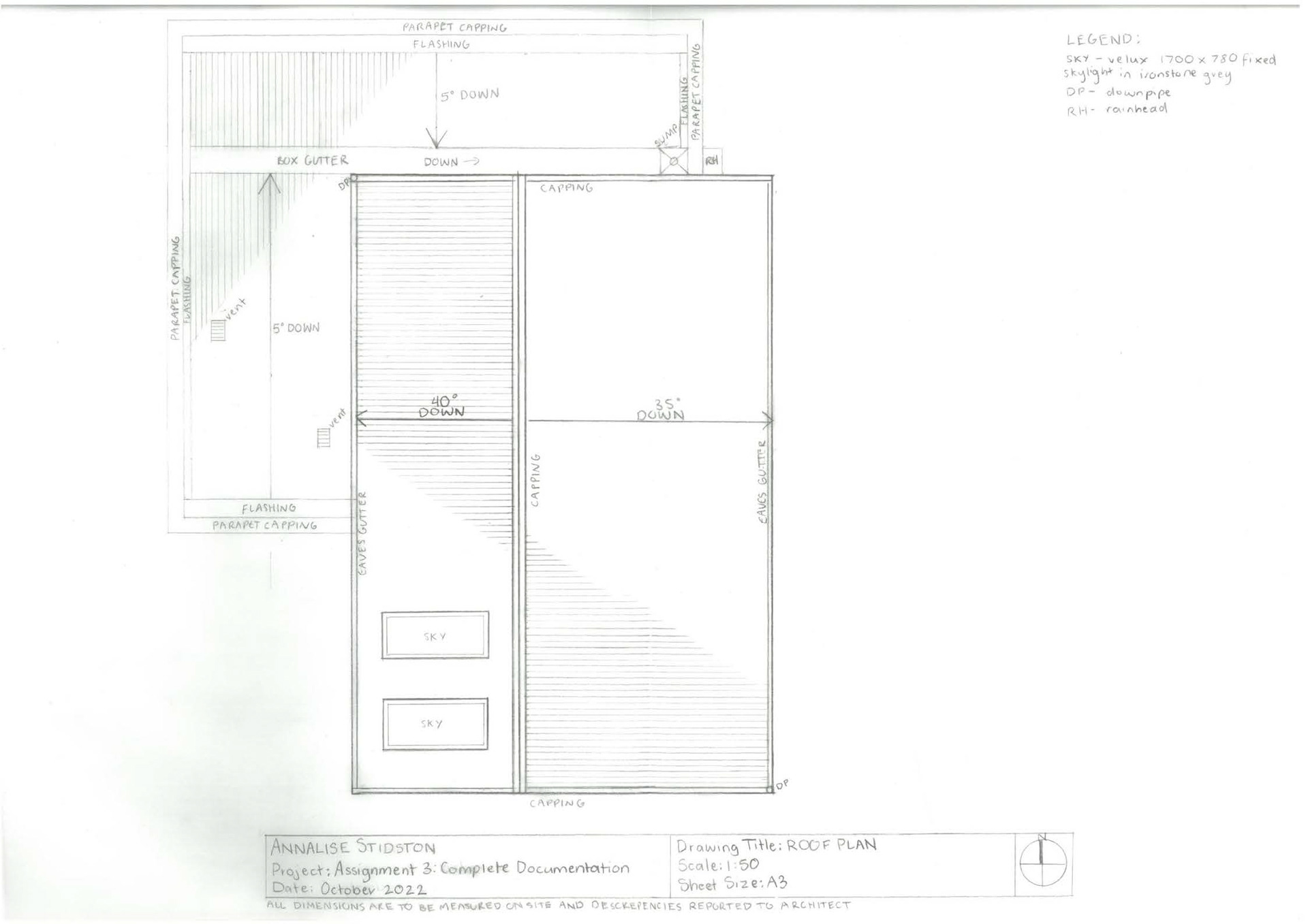

Image 4 - 1:50 Roof Plan

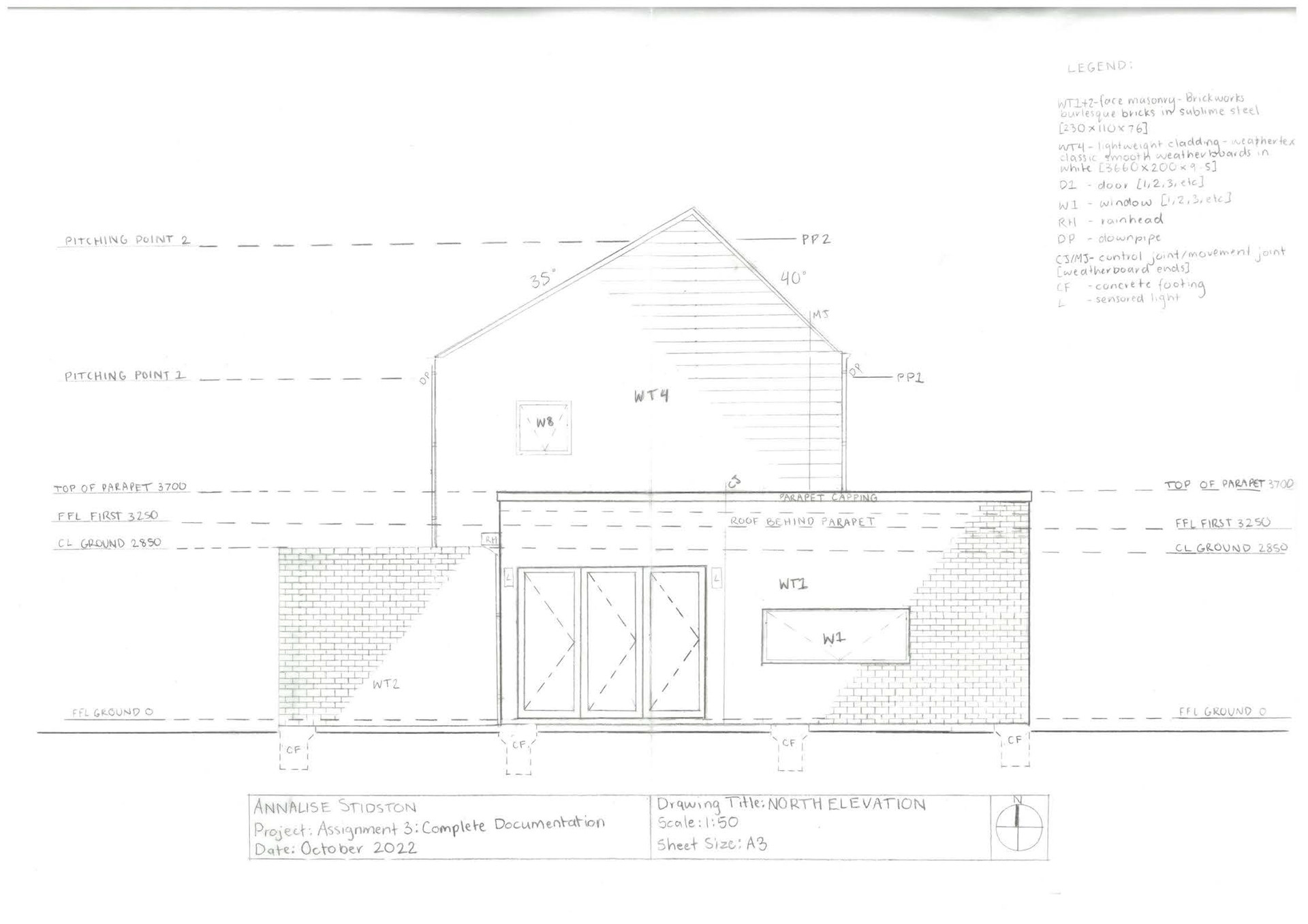

Image 5 - 1:50 North Elevation

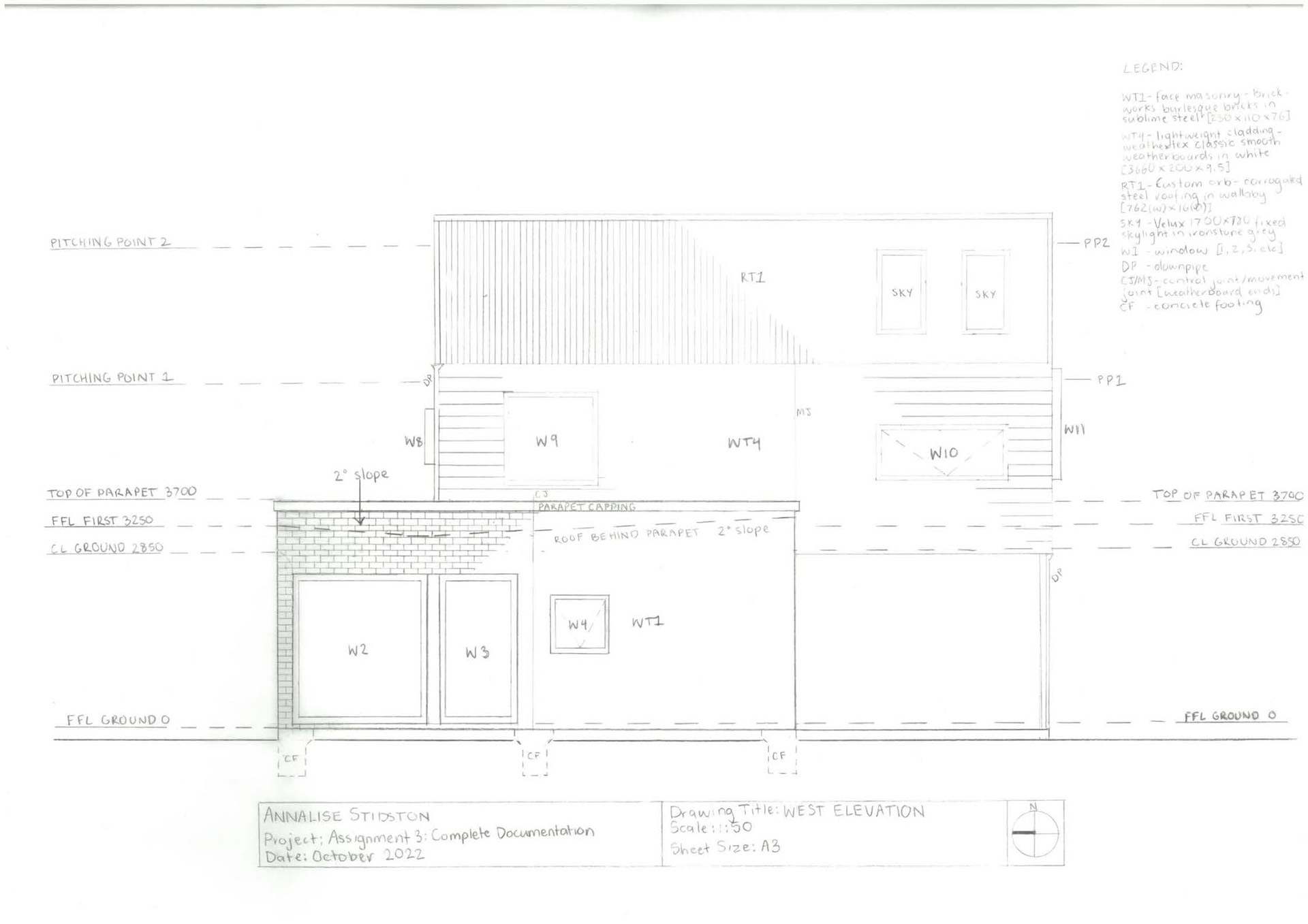

Image 6 -1:50 West Elevation

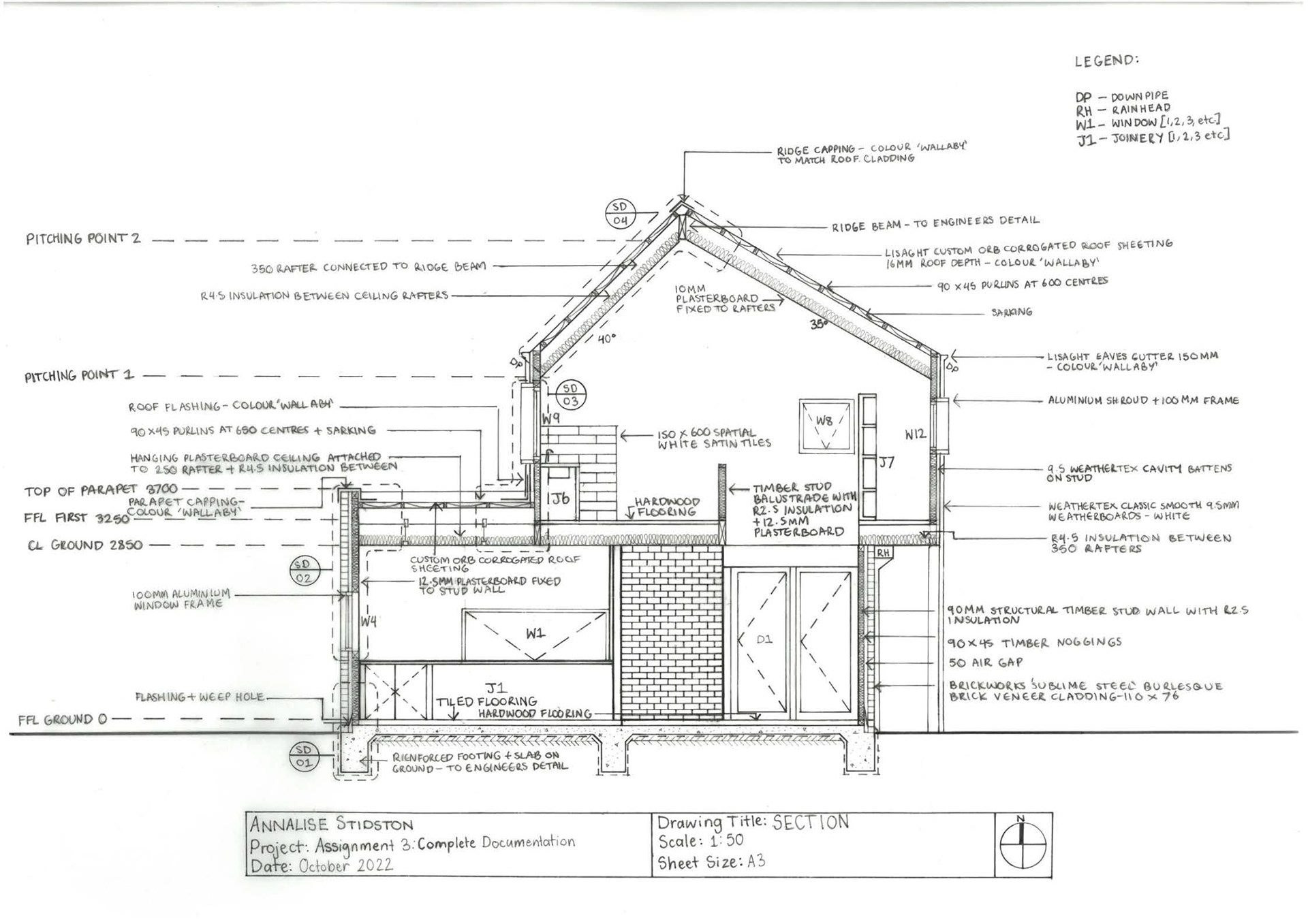

Image 7 - 1:50 Section

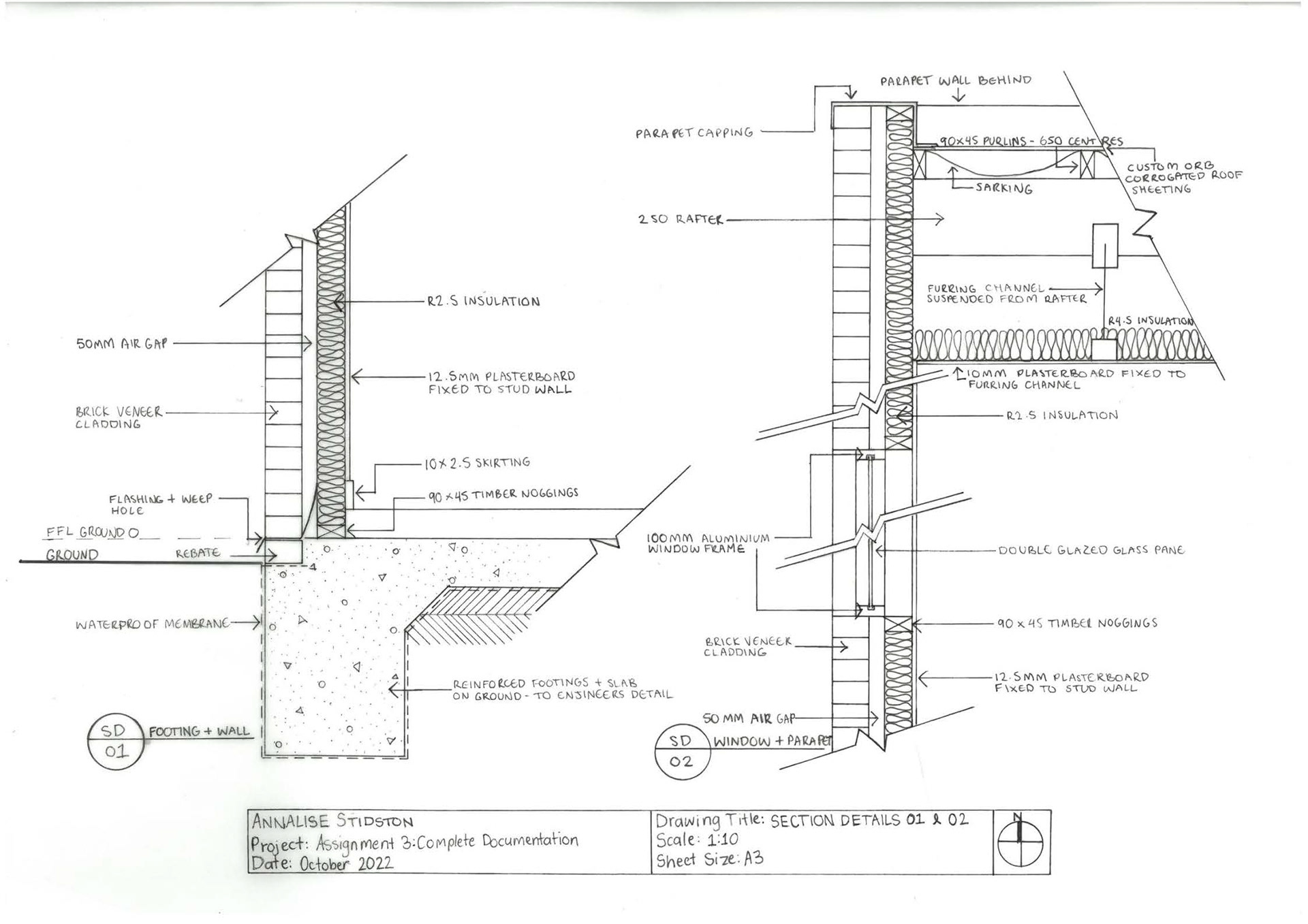

Image 8 - 1:10 Section Details 1 & 2

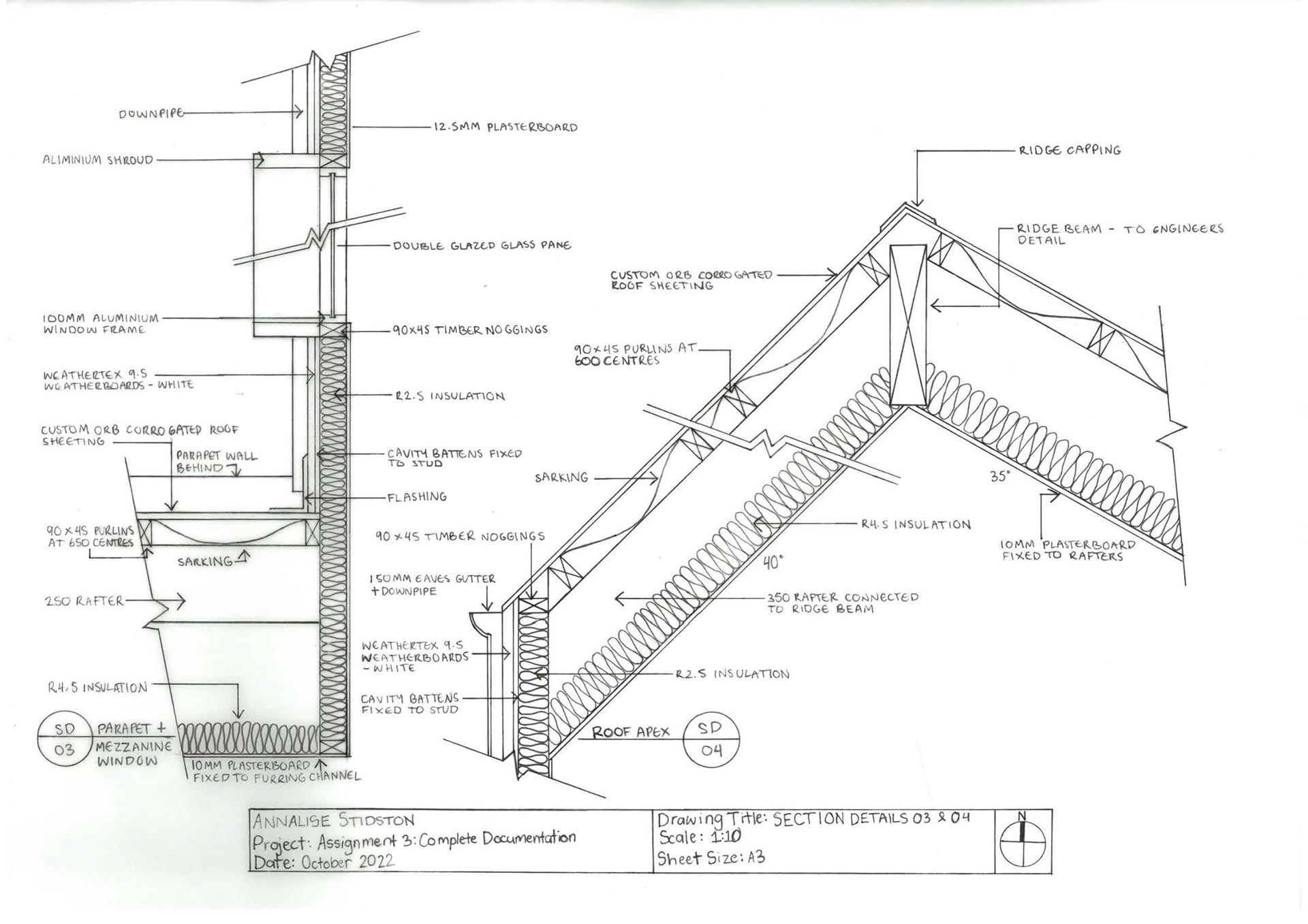

Image 9 - 1:10 Section Details 3 & 4
Image 10 - Physical Model
